Air Diffuser

With the assistance of our dexterous team of professionals, we are engaged in offering a wide range of Air Diffuser. Our provided diffuser is manufactured in line with the set industry standards to deliver high quality and defect free product at clients end. Further it is provided to our clients in diverse sizes to exact suit with their various applications.

Features:

For ceiling installation or application
Material: Aluminum alloy 1.0mm thickness extend
Well white powder-coating finish
Neck Diameter from 100mm to 400mm

Specifications:

Dia.:100-400mm Thick:1mm
Material: Anodized Aluminum
HVAC system well performance

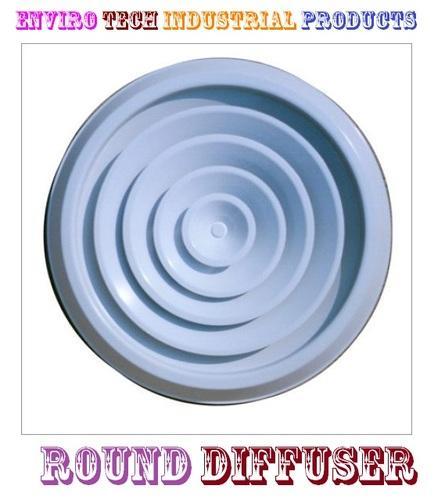

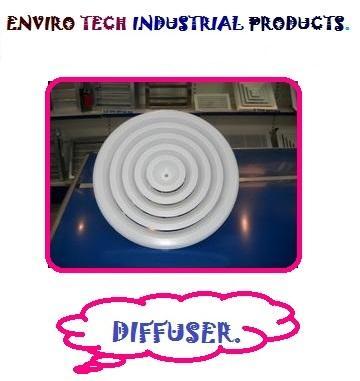

Round Air Diffuser
Round Air Diffuser
(Circle diffuser round ceiling diffuser)

Round Diffuser

The perfect Compliment for any interior where every smallest detail can be executed with care.

Ceiling Round diffuser that match your quest for perfection measure. Crafted in extruded aluminum section.

Round Ceiling Diffusers Series adjustable round ceiling diffusers combine the classic beauty styling with maximum air diffusion efficiency.

Application

Round Ceiling Diffusers can be used both for supply and extract applications. With a fixed blade arrangement the ceiling diffusers are mainly suitable for Circular discharge i.e. 360°.

We have developed many models in response to specific air distribution requirements. Others have been developed or modified to meet requirements as to appearance module size or other visual considerations.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

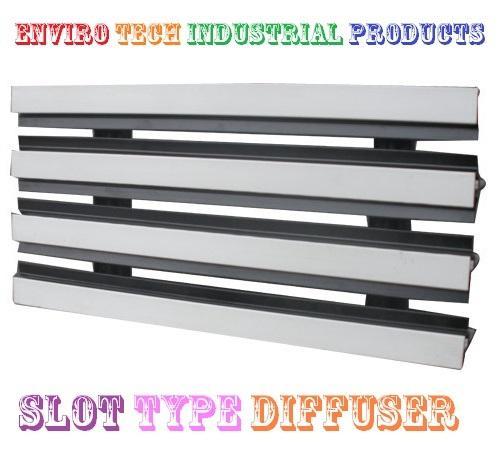

Slot Diffuser

We are engaged in manufacturing and exporting of Slot Type Diffusers.

Our range includes the following features:

Extruded aluminum construction, ideally designed for ceiling installation.
High diffusion rates leading to rapid temperature and velocity equalization.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

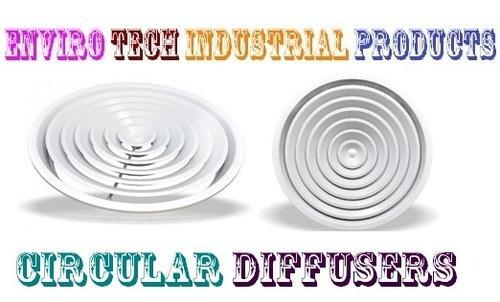

Circular Diffusers

We are engaged in offering a wide range of Circular Diffusers. These Circular Diffusers are available in multi cone type arrangement for air distribution. It has an ability to distribute equally in all the direction. We offer these diffusers at highly reasonable rates to our clients.

Features:

Finish : Powder Coated
Attachment : Butterfly Damper (Optional)
MOC : Aluminium

Specifications:

Model No.	Duct Opening Size (In mm)	Total No. of Rings
ETIP-225	225	3
ETIP-300	300	4
ETIP-375	375	5
ETIP-400	450	6

Other Information

Pay Mode Terms: T/T (Bank Transfer)

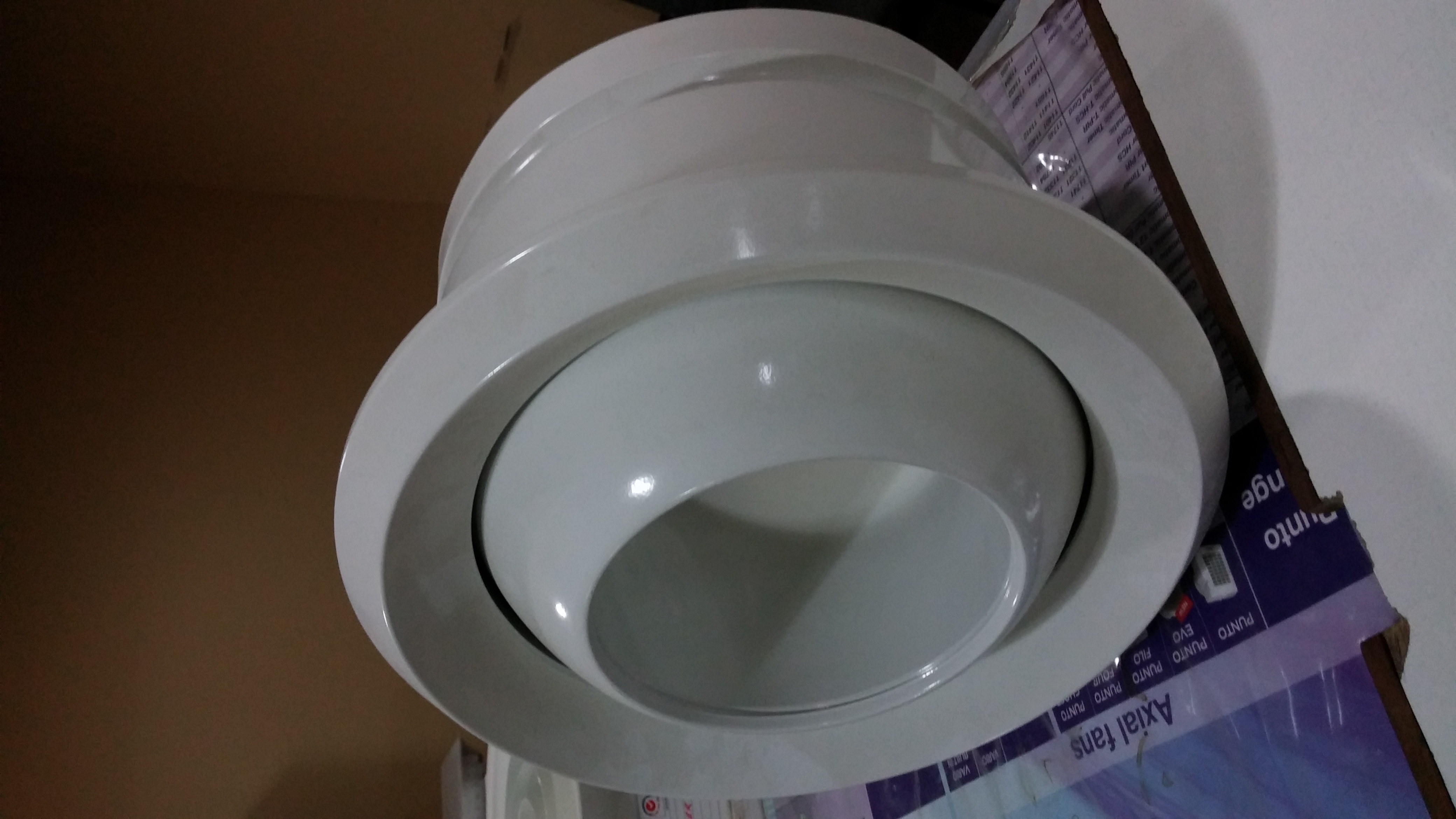

Eye ball Diffuser

We are engaged in offering a wide range of industrial diffusers. Among these we offer Eye ball Diffuser to our clients.These Eye ball diffusers are designed for long distance air throw Applications with low noise. With an actuator application, the ball can be moved in angle of 30 degrees from the center line in a vertical direction only. This eye ball diffuser can be rotated manually also.

Features:

Sturdy construction
Could be manually operated
Reasonable rates
Finish : Powder Coated
MOC : Mild Steel

Specifications:

Model No.	Ceiling Opening Size (mm)	Inlet Dia	OD Dia (mm)
ETIP - 100	100	75	125
ETIP - 125	125	100	150
ETIP - 150	150	125	175
ETIP - 200	200	175	225

Other Information

Pay Mode Terms: T/T (Bank Transfer)

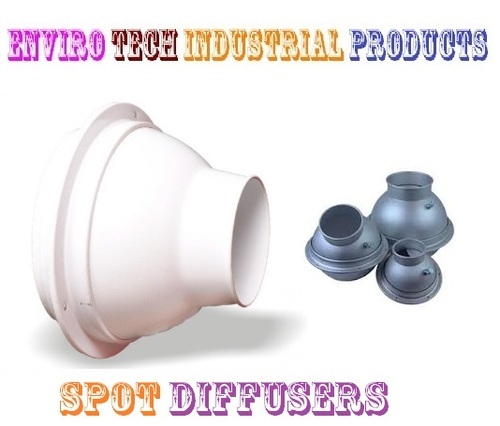

Spot Diffusers

We offer Spot Diffusers. The Spot diffusers are widely used in HVAC Industries where ducting are not possible such as in large Double Height Hall Malls Production Hall etc. These spot diffusers has an ability of setting the air throw within 40° of its installation. We offer these products at reasonable rates to our clients.

Features:

Finish : Powder Coated
Attachment : Butterfly Damper (Optional)
MOC : Aluminium

Specifications:

Model No.	A	B	C	D	E	F	G	H	I	J	K
ETIP- 75	95	75	115	77	20	60	35	80	20	82	40DEG
ETIP-100	130	100	147	101	25	75	54	100	30	106	39DEG
ETIP-200	230	200	250	203	45	120	100	165	40	208	42DEG
ETIP- 300	340	304	362	314	62	200	165	262	50	318	39DEG
ETIP-400	450	410	470	420	93	247	225	340	60	425	40DEG

Other Information

Pay Mode Terms: T/T (Bank Transfer)

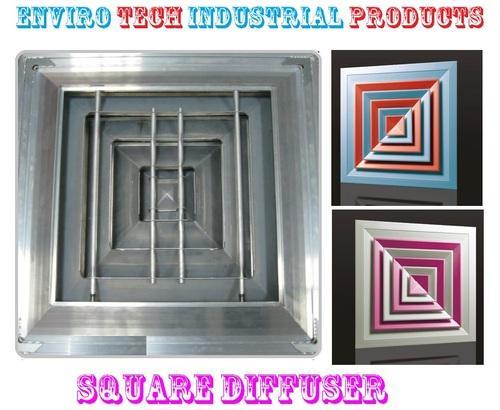

Square Diffuser

We are a leading industry, offering world-class range ofSquare Diffuser. The product is used widely in various industrial applications and are extensively preferred for their maximum performance level, smooth functioning attribute and longer service life. To meet the requirements of the clients, the product can be custom made as per the requirements and specifications, on demand.

Features:

Robust structure
Optimum performance level
Longer service life
As per the set quality specification

Other Information

Pay Mode Terms: T/T (Bank Transfer)

Disc Valves / Round Valves

Application:

Square swirl diffuser with individually adjustable vanes to be used from 2.6 mtrs. to 4.0 mtrs. high in Air-conditioning, ventilating and heating system.

Mounting:

Overlapped in false ceiling by means of hidden fixing systems or directly replacing the false ceiling tile as well as directly in the plenum boxes.

Implementation:

High quality aluminum sheet construction slots punched in a radial layout with individually adjustable black plastic vanes on rear side. Available in standard sizes to fix with plenum boxes. Ensures a swift reduction temperature and flow velocity by means of swirling discharge and the addition of induction air, excellent performance that eliminated drafts and stratification. Rapid entrainment and intermixing capabilities.

Standard Finishes:

Available in natural aluminum, anodized or powder coated in standard RAL white colors.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

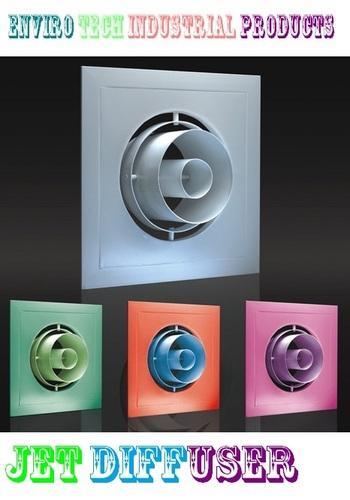

Jet Diffuser

With the help of our diligent professionals, we are able to offer Jet Diffuser. These are extensively used in varied industries and are appreciated for their optimum performance, precise functioning and longer service life. Further, to meet the varied application requirements these are available in standard as well as customized specifications.

Configuration:

Jet diffuser is made up of high quality aluminum
Jet diffuser are designed for use in large areas long throw such as sport centers, theaters, airport, entertainment and industrial area
Jet diffuser suitable for air conditioning evaporate cooling or ventilation application
Jet diffuser can be rotated by 360 degree by adjusting the core
Jet diffuser are available in with or without panel
Standard Finish: Natural anodized & Powder coated

Standard Finishes :

Jet diffusers are available in natural aluminum, anodized or powder coated in standard RAL white colors

Application:

Jet diffusers are immensely used for high ceiling such as airports, cinema theaters, shopping malls, exhibition halls & high roofing industries.

Mount

The jets diffusers can be fixed by means of visible metal screws on flanges in side throw or to be fixed directly with plenum boxes.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

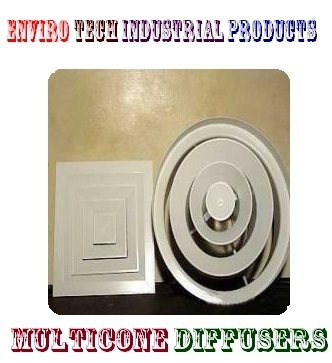

Multicone Diffusers

We are engaged in manufacturing and supplying a superior quality range of Multicone Diffusers. This is available in MDC model and is suitable for air distribution as per global standards in various industries. These help in creating efficient air distribution and also maintain various ceiling patterns. We use high grade aluminium in construction purpose to ensure different air pattern control core designs for horizontal diffusion.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

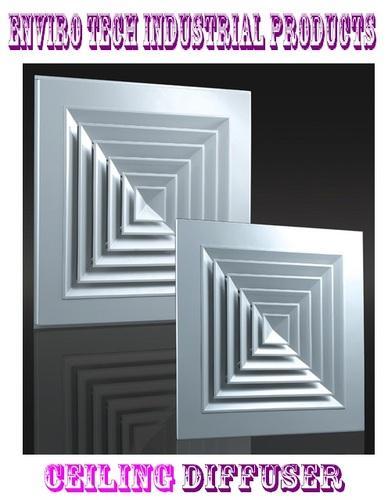

Ceiling Diffuser

Our clients can avail from us a range of Ceiling Diffusers,which is used in various establishments for supplying air. These elegant diffusers are suitable to be used with any kind of ceiling. Reckoned for durability, these wear & tear resistant diffusers are in compliance with the defined industry standards. Some features that make these popular are:

Durability
Excellent finish
Easy to install

Other Information

Pay Mode Terms: T/T (Bank Transfer)

Jet Nozzle Diffuser

Jet Nozzles are to be used for very high ceiling like airports cinema theaters shopping malls exhibition halls and high roofing industries. For ceiling mounting supply of large quantities of air or side wall installation with very long throws. They are having high air handling capacity with low noise level.

Mounting:

Fixing by means of visible metal screws on flanges in side throw or to be fixed directly with plenum boxes.

Implementation:

Frame and inner rings are made of high quality aluminum jet diffusers are mounted in aluminum square plate covered by flanged border. Diffusers can be adjustable 30º upwards or downwards to achieve required throw as per site conditions.

Neck Size	150	200	250	300	350	400	450
Outer Size	195	245	295	355	405	455	505

Standard Finishes Available in natural Aluminum, anodized or powder coated in standard RAL white colors.

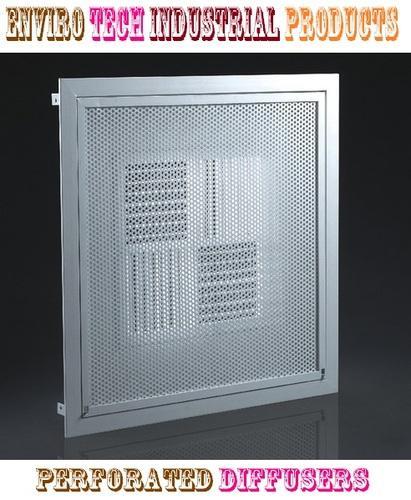

Perforated Diffusers

Perforated Diffusers are implemented using frame with flat frontal face of 30mm and inner leaves of aluminium sheets connected by means of metal screws with the frame. Recommended along with exhaust fan installation louvers to open when fan is in operation at duct branches. Designed to prevent rain penetration. Standard or non-standard sizes also available.

Application:

Air expelling in air conditioning, ventilating and heating systems.

Mounting:

Overlapped in the wall by means of visible screws.

Standard Finishes:

Available in natural aluminium, anodized or powder coated in standard RAL white colours.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

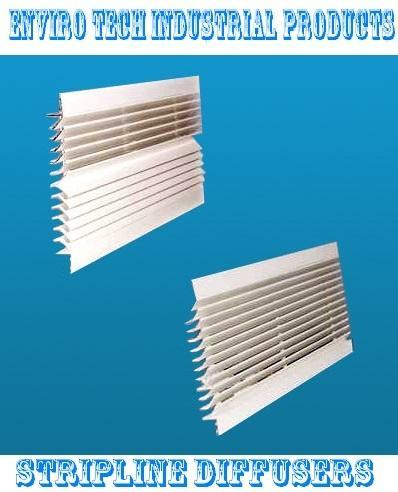

Stripline Diffusers

Stripline Diffusers are mainly used for outdoor installationto take the air from the exterior or to expel the used air in air-conditioning, ventilating and heating systems. Louvers are designed to prevent rain penetration.

Mounting:

Overlapped in the wall by means of visible screws or side frames to fix in place.

Implementation:

Frame with flat frontal face of 30mm and inner fixed blades inclined at 45º, from 27 to 32mm pitch according to sizes. Diamond mesh of 13mm x 13mm fixed on back side of the louver to avoid the entrance of foreign bodies into the installation. Provides a neat external appearance to the building. Available in standard or non-standard sizes.

Standard Finishes:

Available in natural aluminium, anodized or powder coated in RAL white colors.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

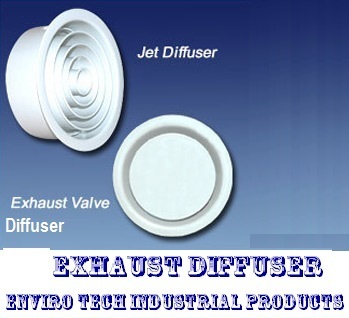

Exhaust Diffusers

With our expertise in this domain, we specialize in offering a wide range of Exhaust Valve Diffusers. These are manufactured by our team of qualified engineers using our advanced production techniques. Our exhaust valves are specifically designed for use in entertainment, industrial and toilet areas for their air flow feature.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

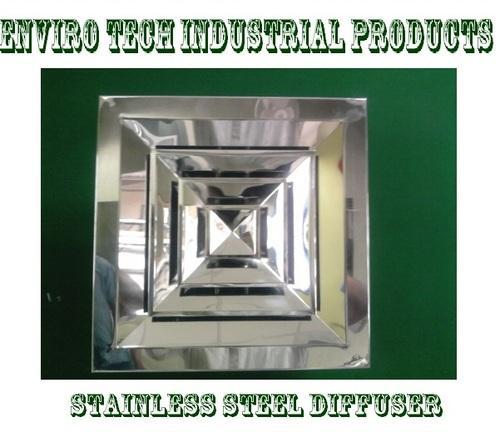

Stainless Steel Diffuser / S.S. Diffusers

With vast industry experience, we are engaged in offering S.S. Diffusers. These products are available and manufactured by our production staff using high quality stainless steel as per the set industrial standards. Our quality analysts check all these diffusers before delivery on well-defined parameters. These diffusers are available in the market at competitive prices as per the needs of our clients.

Features:

Precise Dimensions
Durability
Low Maintenance

Other Information

Pay Mode Terms: T/T (Bank Transfer)

Stripline Diffusers

Mounting:

Overlapped in the wall by means of visible screws or side frames to fix in place.

Implementation:

Frame with flat frontal face of 30mm and inner fixed blades inclined at 45º, from 27 to 32mm pitch according to sizes. Diamond mesh of 13mm x 13mm fixed on back side of the louver to avoid the entrance of foreign bodies into the installation. Provides a neat external appearance to the building. Available in standard or non-standard sizes.

Standard Finishes:

Available in natural aluminium, anodized or powder coated in RAL white colors.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

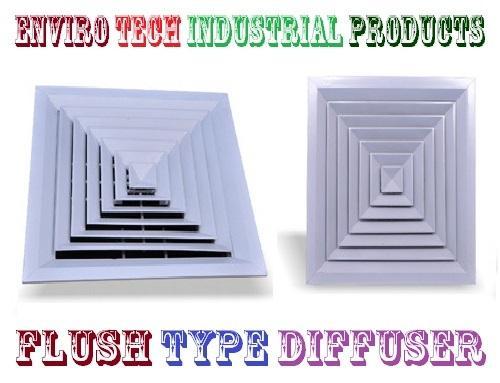

Flush Type Diffuser

We are a reliable manufacturer and exporter of Flush Type Diffuser.These Flush type diffusers are available in multi cone type arrangement for air distribution through ceiling. Our offered range of diffusers are specifically designed for ceiling mounting.

Features:

Finish : Powder Coated
Attachment : Oppose blade type damper (Optional)
MOC : Aluminium

Specifications:

Model No.	Outer to Outer Size MM	Neck Size MM	Collar Size MM	Height	Cutout Opening Size MM
ETIP-150	270x270	150x150	135x135	41	205x205
ETIP-225	345x345	225x225	210x210	41	280x280
ETIP-300	420x420	300x300	285x285	41	355x355
ETIP-375	495x495	375x375	360x360	41	430x430
ETIP-425	570x570	425x425	440x440	41	505x505
ETIP-455	595x595	475x475	460x460	41	530x530

Other Information

Pay Mode Terms: T/T (Bank Transfer)

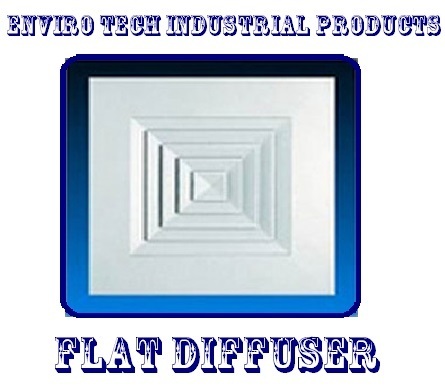

Flat Diffuser

Manufactured from aluminum sheets in one piece. (No joints / gaps at corners)
Easily removable Internal Assembly for cleaning or servicing, if necessary
Available as Supply and Return Diffuser. (With or Without Opposed Blade Damper)
Less dirt accumulation.
Powder coated in attractive colours.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

Swirl Diffusers

Our range of Swirl Diffusers is easy to install and offers superior power efficiency. The products are made in accordance with the set global standards. These products have fully adjustable air pattern blades for supplying air properly. The adjustable vanes attached to these products are capable to solve the problems regarding the supply of warm and cool air into the modem office application.

The salient features of the product range are:
