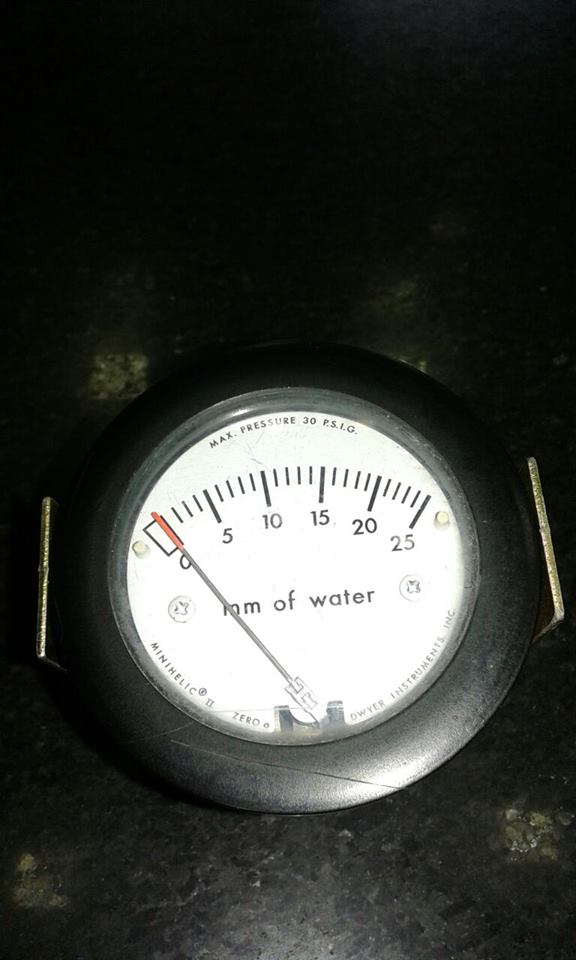

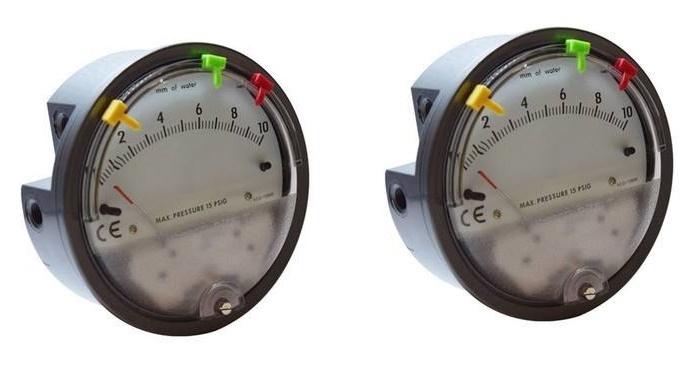

Aerosense Differential Pressure Gage

 Backed by years of experience of this domain, we present clients with the premium quality of Aerosense Differential Pressure Gage. Used for measurement of differential pressure, the pressure gauge is manufactured by using latest technology. In order to ensure high standards of quality, the Aerosense differential pressure gauge is procured from trusted vendors.

Features:

• Excellent measurement accuracy
• Easy to use
• Requires less maintenance

Specifications:

• Indicating Pressure Reference: Differential Pressure Gauge
• Ambient Temp.Range: -7 ~ 60 °c
• Weight: 1 Lb. 2oz (510g)

Yes ! I am Interested

 Aerosense Differential Pressure cum Flow Transmitter

 Aerosense Differential Pressure cum Flow Transmitter is technically engineered type of flow transmitter that is especially used in HVAC/R industry to control the flow, velocity and static of air pressure. Apart from measuring the flow of air control, this type of transmitter is used in the other major applications such as VAV domain and air flow monitoring across centrifugal fans & blowers. It supports low power consumption as well as enabled with the zero point calibration system.

Yes ! I am Interested

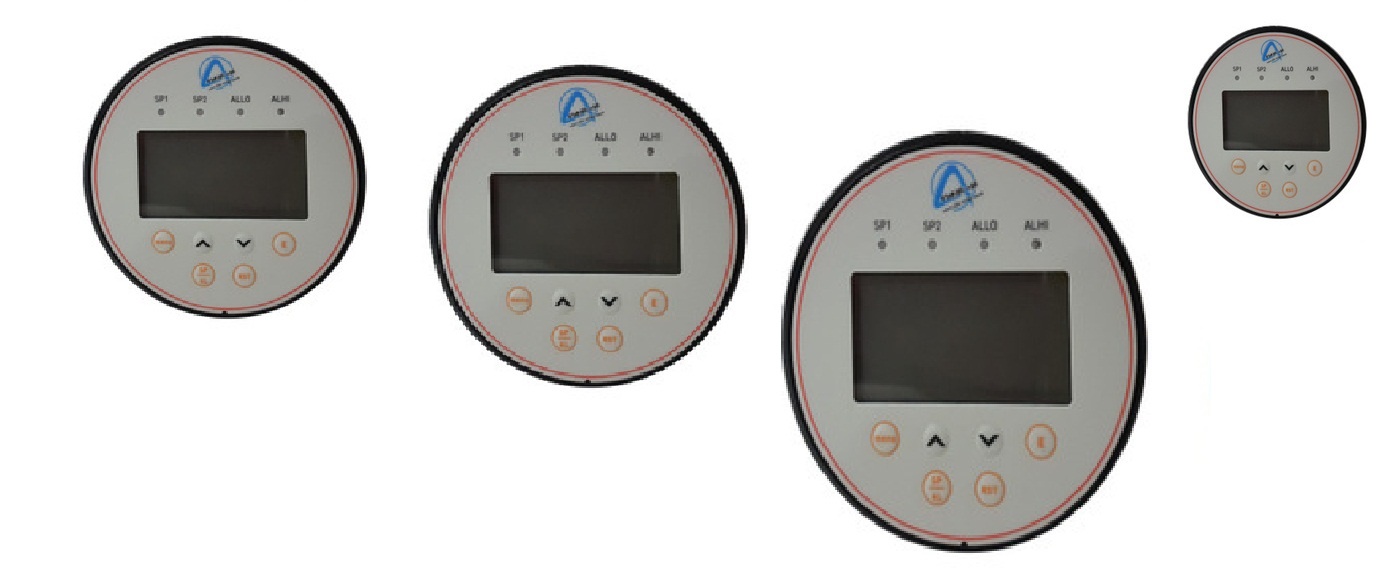

 Aerosense DP Gauge

Aerosense DP Gauge are extensively used for measuring the differential pressure in pharma clean rooms, HVAC applications, pharmaceutical machinery,Pass Box,etc.

Specifications:

• Indicating Pressure Reference: Gp,Cp,Ap or Dp Selectable
• Function: Electric Signal-controlled
• Application: Industrial
• Display: Digital

Yes ! I am Interested

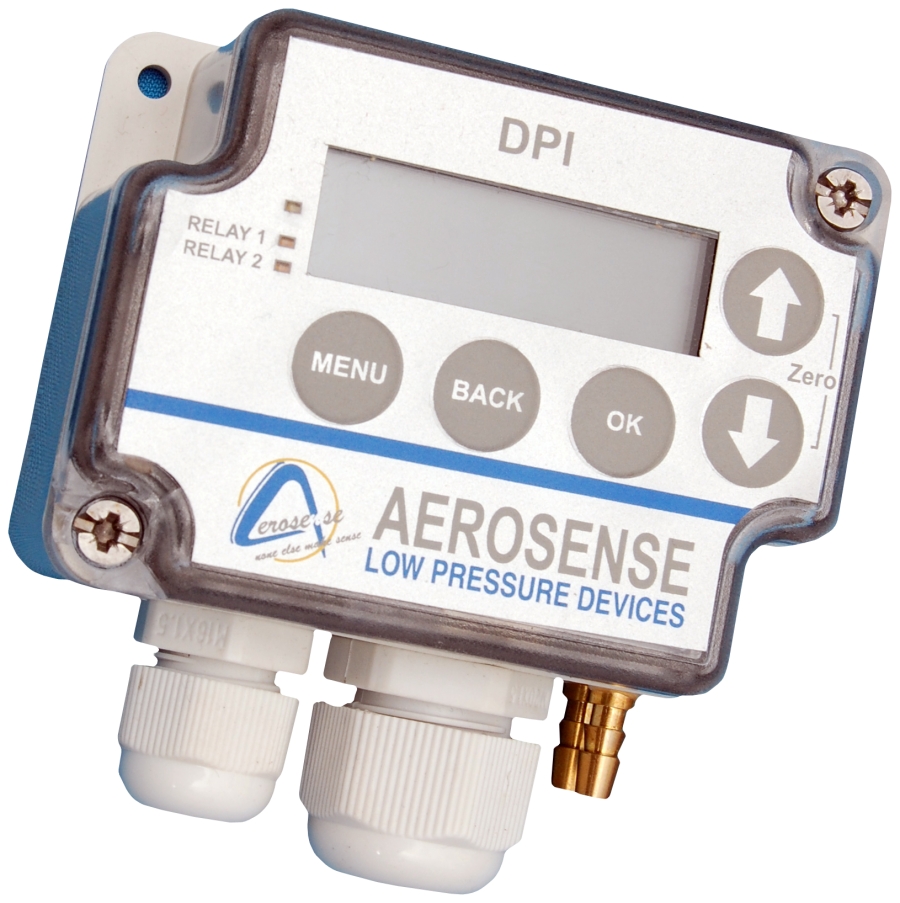

  Aerosense Differential Pressure Indicator

Aerosense Differential Pressure Indicator is demanded for its impeccable qualities and features. It is extensively demanded in the applications areas where HVAC systems are installed to resolve the problem of humidity & temperature control. It is suitable for energy optimization and therefore widely used for the measurement of HVAC duct pressure. Along with the pr??cised operations it has integrated high speed differential pressure sensor that provide accurate results in a significant manner.

Yes ! I am Interested

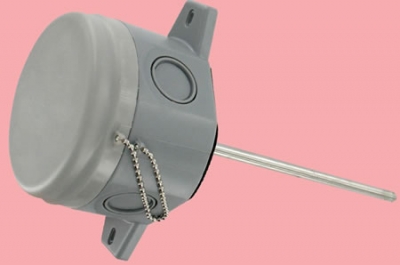

  AEROSENSE TRANSMITTER

The Model ECMT200 Carbon Monoxide Transmitter provides a field selectable current or voltage output that is proportional to the gas concentration in underground parking garages, vehicle maintenance facilities, or mechanical rooms. A field replaceable, electrochemical sensor provides accurate readings for up to 4 years with proper calibration

• Sensor: Field replaceable electrochemical, 4 year typical lifespan. Range: 0 to 200 ppm.
• Output Drift: <5% per year in air.
• Coverage Area: 5000 to 7000 sq. ft. typical.
• Accuracy: ±2% of reading at the time of calibration.
• Temperature Limits: -4 to 122°F (-20 to 50°C).
• Storage Temperature: For best sensor life, 32 to 68°F (0 to 20°C). Humidity Limits: 15 to 90% RH constant; 0 to 99% RH intermittent. Response Time: <45 seconds to 90% of final value.
• Calibration: 15 turn span and zero adjustment potentiometers. Housing: UV resistant polycarbonate.
• Output: Jumper selectable 4 to 20 mA (loop powered) or 2 to 10 V (load must be >50 KQ).
• Power Requirements:
  • Current Output: 18 to 28 VDC;
  • Voltage Output: 18 to 28 VDC/VAC, reverse polarity protected.
• Electrical Connection: Removable terminal block, includes two PG11and one PG 16 knockouts for conduit fitting.
• Weight: 0.28 lb (0.11 kg)

Yes ! I am Interested

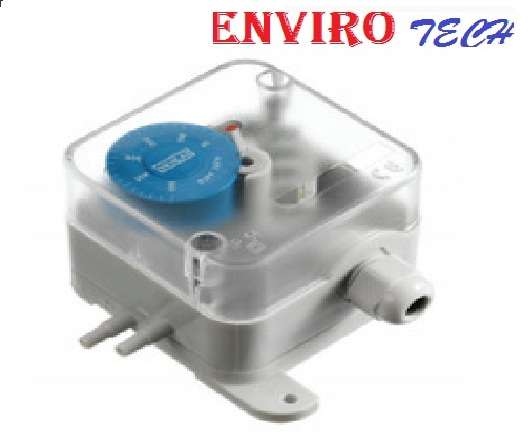

  Aerosense Differential Pressure Switch

the series of pressure switches Aerosense Differential Pressure Switch is the most updated one.Generally, they are applied in the fan, blower and filter monitoring as well as to measure the pressure and flow of gases & liquids in different industries. Enabled with the effective mechanism these switches have high-tech features & specifications such as selectable switching point adjustment and measurement unit facility in PA.Several additional accessories are also provided for the ease of users that primarily include metallic duct connectors,plastic dust connectors, and fixing screws.

Features:

• Pressure and flow monitoring
• Two fixing screws
• Metallic duct connectors

Specifications:

• Medium: Air, Non-Combustible and Non-Aggressive Gasses
• Electrical Rating: 1.5A (0.4A) / 250V
• Usage: Control Switch

Yes ! I am Interested
