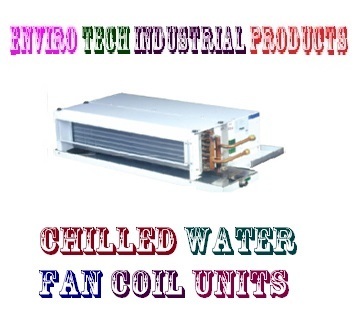

Chilled Water Fan Coil Units

Our Chilled Water Fan Coil Units vary are offered in the range of 1.0 to 2.5 tons with DX chilled water or heating coils for cooling & heating purpose. The units can be either placed on the floor or suspended from the ceiling. The cooling coils are made of copper tubing and sine wave aluminum fins with vent valve for air removing. The motors for blowers have 3 speeds to work for comfort level. The casing is made out of G.I. sheet and powder coated as per the customers choice. The cooling and heating coils are made of copper tube and aluminum fan.

Following are the salient features of the fan coil unit:

Enhanced construction for long life
Rust resistant body
High efficiency and low noise
Space saving due to slim construction
Low energy consumption
No leakage of water

Other Information

Pay Mode Terms: T/T (Bank Transfer)

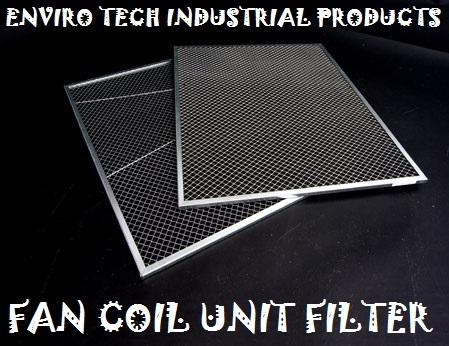

Fan Coil Unit Filter

Fan Coil Unit Filter are designed to meet the requirements of high efficiency filtration under high chemical exposure and high humidity conditions. These are available in 3 different variations namely: H.D.P.E (High Density Polythene)pleated/rod type Pleated Channel type and Rod-Frame type PH Filter. All the pre filters are made under strict quality control scanner for complete .

Construction: are made from high quality synthetic non-woven media supported by stitching HDPE media on both sides. Media is then stitched and housed inside a rod frame.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

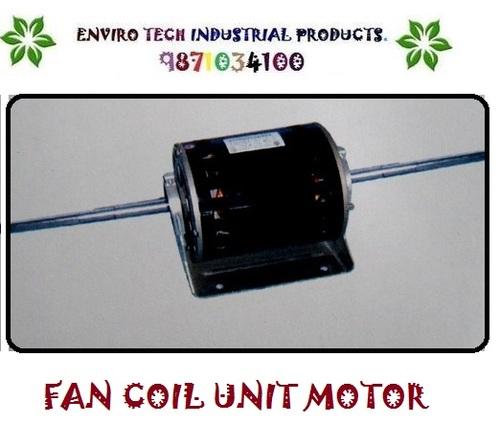

Fan Coil Unit Motors

Available FCU { Fan Coil Unit } motors in different capacity

Other Information

Pay Mode Terms: T/T (Bank Transfer)

Ceiling Concealed Fan Coil Unit / Ceiling Concealed FCU

We are among the noted names in the industry, manufacturing and exporting Ceiling Concealed Fan Coil Unit for our revered customers. The offered units are designed in strict compliance with the industry standards and are characterized by low height and compact design. Customers can avail these units in direct driven or belt driven, single or multi centrifugal fan and double skin or single skin options.

Specifications:

Capacity Range:

800 cfm to 10,000 cfm

Applications:

Comfort Air-conditioning - For Shopping Malls, Multiplexes, and Small offices..

Features:

Compact
Low height with single /multi centrifugal fan
Direct driven/ Belt driven options with 3 phases
Units available in Double / Single skin
Double skin units available with aluminum profile
Direct Driven units with single-phase motors

Other Information

Pay Mode Terms: T/T (Bank Transfer)

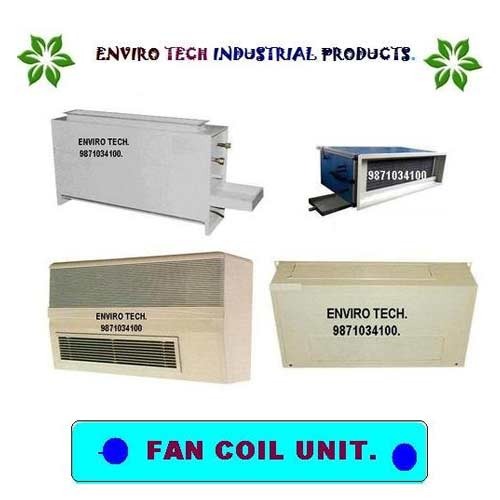

Fan Coil Unit

Backed by a team of skilled professionals our enterprise is able to offer a wide range of Fan Coil Unit that produces very less noise. Offered range is manufactured using finest quality raw material and advance technology under the strict industry laid norms. Our offered coil unit is available in different specifications and sizes as per the requirements of the clients. Apart from this, we deliver this coil unit within the promised time frame to our clients.

Features:

Hassle- free performance
Finely finished
Corrosion resistance

Specifications:

Fan coil units are available in two configurations:

horizontal type suitable for ceiling suspension
vertical type suitable for floor mounting

Casing:

Galvanised sheets of heavy gauge steel with suitable drain tray to avoid sweating
The fan coil unit are (double skin) painted with stove paint/ h. T. Paint, electro static paint as per customer requirements

Blowers:

the multi blade forward curved centrifugal type aluminium fan wheels statically and dynamically balanced are driven by extended shaft motor

Fan Motor:

3 speed permanent split capacitor type motor with extended manual speed selection

Drain Fan:

heavy gauge
Double skin insulated drain pan extend full width of coil collect condensate from chilled water coils valve and fitting with provision of drain nipple to avoid overflow

Cooling Coil:

3 row deep 3/8 o. D. Copper tubing aluminum fin construction provide maximum

Heat transfer:

The water inlet and outlet are provided with flare nut for connections to control valves.

Air Filter:

Filter is made of expanded aluminum mesh/ HDPE media/synthetic non-w oven media and is permanent cleanable type filter the air to a maximum deg.

Technical Specifications:

model no Enviro tech fan coil unit
ceiling suspended type unit
powder coating type unit
centrifugal blowers DWDI aluminum impeller with static & dynamically balanced
single phase motors
cooling coil copper pipes
g. I. Sheet
drain tray with insulation
Enviro tech industrial products fan coil unit model no – etipfcu
available size 1. 0 tr 1. 5 tr 2. 0 t 2. 5 tr 3. 0 tr 5. 0 tr
fan coil unit direct driven
fan coil unit v belt driven
fan coil unit horizontal arrangement
fan coil unit ceiling suspended
fan coil unit duct able ac
fan coil unit ac ducting system

Applications:

Showroom.
Shopping Mall
Restaurant & Bar
Hotels
Office
Call Center
Building
Clean Room
Fan Coil Unit

Other Information

Pay Mode Terms: T/T (Bank Transfer)

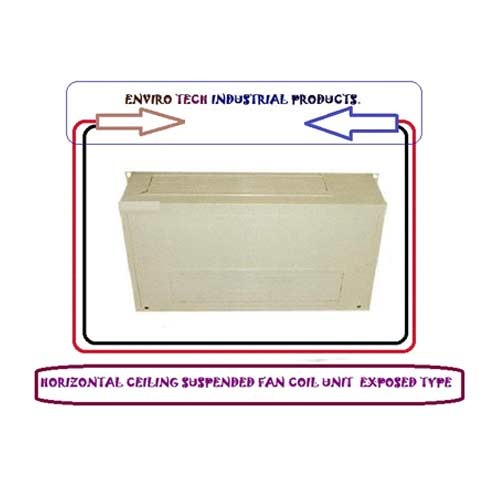

Fan Coil Unit Horizontal Ceiling Suspended Exposed Type

Specifications:

Dimension of Horizontal Ceiling Suspended Exposed Type
MODEL	A	B	C	D	E	F	G
ETIP050	1000	560	300	160	660	200	660
ETIP075	1210	650	300	160	860	200	860
ETIP100	1335	670	360	180	940	205	940

Other Information

Pay Mode Terms: T/T (Bank Transfer)

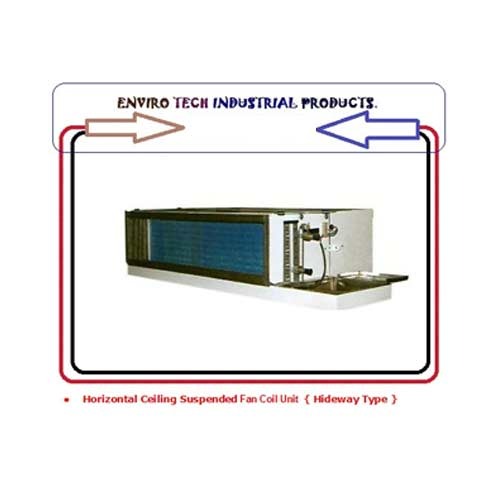

Fan Coil Unit Horizontal Ceiling Suspended Hideway Type

Specifications:

Dimension of Horizontal Type Unit
MODEL	A	B	C	D	E	F	G	H	I	J
ETIP050	970	510	718	250	673	165	235	290	350	222
ETIP075	1200	610	838	280	877	165	285	290	395	248
ETIP100	1295	630	950	280	953	216	285	340	385	274
ETIP125	1325	630	950	280	997	260	285	390	553	274
ETIP150	1525	780	1110	412	1150	260	310	390	510	310

Other Information

Pay Mode Terms: T/T (Bank Transfer)

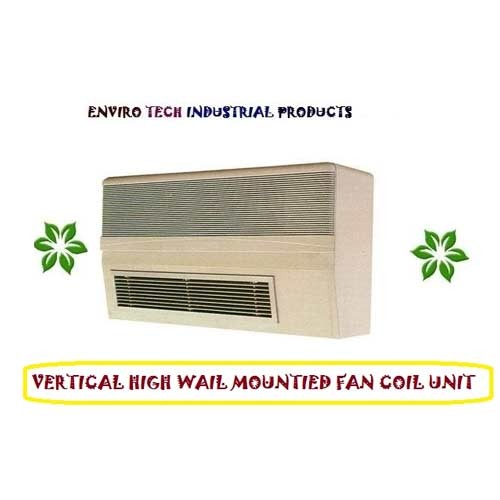

Fan Coil Unit Vertical High Wall Mounted Unit

Specifications:

Dimension of Vertical High Wall Mounted Unit
MODEL	A	B	C	D	E	F	G	H	I
ETIP050	250	200	480	140	950	100	720	160	720
ETIP075	270	220	570	180	1020	120	780	185	780
ETIP100	270	220	570	180	1020	120	780	185	780

Other Information

Pay Mode Terms: T/T (Bank Transfer)

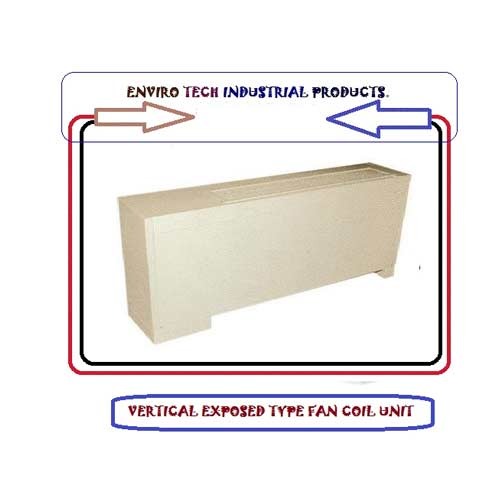

Fan Coil Unit Vertical Exposed Type Unit

Specifications:

Dimension of Exposed Type Unit
MODEL	A	B	C
ETIP050	1120	565	270
ETIP075	1230	565	280
ETIP100	1300	610	290
ETIP125	1350	650	300
ETIP150	1460	720	350

Other Information

Pay Mode Terms: T/T (Bank Transfer)

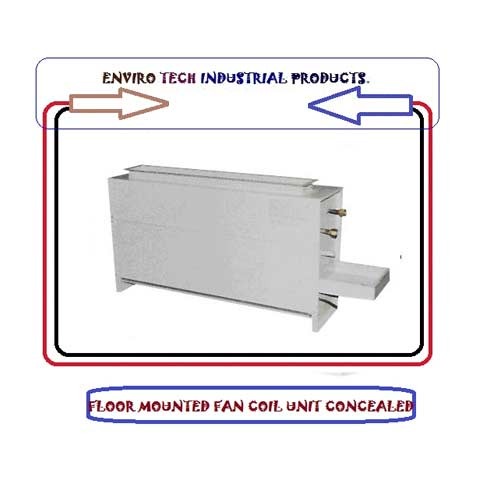

Fan Coil Unit Vertical Floor Mounted Concealed Unit

Specifications:

Dimension of Vertical concealed Type Unit
MODEL	A	B	C	D
ETIP050	840	550	265	260
ETIP075	1020	550	265	260
ETIP100	1100	600	285	260
ETIP125	1150	715	295	260
ETIP150	1250	715	345	260
