Portable Desk Laminar Air Flow

Our range of portable desk laminar air flow is made of stainless steel table top for CRCA. It also have HEPA filters pre filters inbuilt UV tube attachment.

Manometer:

Acrylic block type
Accurately calibrated
LPG gas cock

Other Information

Pay Mode Terms: T/T (Bank Transfer)

Interlocking Pass Box

We have a strong hold in the market for manufacturing and supplying of Interlocking Pass Box that is offered with a mechanical interlock system that prevents both doors from being opened at the same time thus it helps to minimize the amount of particulate contamination entering the clean room and also reduces the operator traffic.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

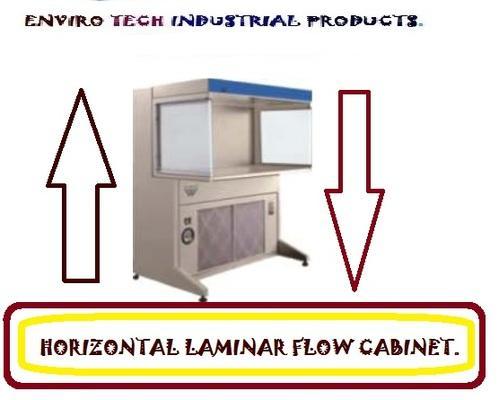

Horizontal Laminar Flow Cabinet

We are one of the prominent manufacturers of highly efficient HORIZONTAL Laminar Air Flow Bench/ Work Station which is appreciated for its performance. It is used in applications like industrial medical pharmaceutical and bio-tech research. These are manufactured from S.S. 304 with due reinforcement for better performance and stability.

Item	Description
Qty.	As required
Dimensions	As per drawings enclosed
MOC	S.S 304 (except Filters and motor - blower filters)
Pre Filter	Air micron make pre filter with micro glass fibre media of EU - 6 rating
Efficiency	95% down to 5m
Final Supply Filter	Imported minipleat HEPA filter with hot melt technology of EU-13 rating
Efficiency	99.99% down to 0.3m
Motor Blower Assy	Induction motor with centrifugal blower statically and dynamically balanced with suitable rating and size
Mounting	Unique spring suspension systems to take care of vibration and noise
Working Table	S.S. 304 with due reinforcement for better performance and stability
Side Panel Accessory No.	Glass side panels
Instruments
Pressure Gauge	DAWYER, USA magnehelic differential pressure gauge : 01 No
Lights	Fluorescent tube with milky white diffuser
Other Electrical	3 Pin Socket, 15 AMP - 1 No. - On / Off switches with indicator
Performance
Air Cleanliness	Class ISO - 5 ( as per ISO - 14644-1 )
Air Flow Rate	0.45 ± 0.05mps
Illumination Of Light	Optimum
Noise Level	Less than 67 db on Scale A When Ambient sound Level is not Greater than 55 db on Scale A
Vibration Level	Minimum

Other Information

Pay Mode Terms: T/T (Bank Transfer)

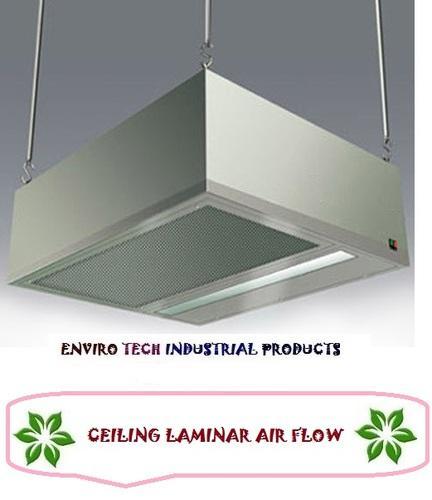

Ceiling Laminar Air Flow

Ceiling Laminar Air Flow (claf) are used for ot applications pharma filling & packing line etc. Ceiling Laminar Air Flow provides ultra clean sterile hepa filtered class 100 air in a isolated area where the highly sensitive process activities are carried-out. Ceiling Laminar Air Flow available in complete stainless steel construction or gi construction with pu coated finish. Equipped with minipleat hepa with dynamically balanced ultra-low noise blowers for optimum airflow.

Technical specifications of our Ceiling Suspended Laminar Flow are:

MODEL	ETIP-36-24	ETIP-72-36
Work Area Dimension (L x W x H)	1035x760x665 MM	1950x1065x665 MM
Hepa Filter Area (L X W)	915 x 610 MM	1830 x 915 MM

Air Velocities	0.45 ± 0.05 mps
Air Flow	Vertical
Noise Level	Less than 67 dB
Vibration Level	Minimum
Light intensity	> 300 lux
Power Supply	230V AC 1-Ø 50HZ
Two Stage filtration	• EU6 – Prefilter (95% down to 5 micron) • EU14 - HEPA Filter (99.999% down to 0.3 micron) at supply position
Motor- blower	Statically & Dynamically balanced Motor- blower with suspension arrangement to reduce noise level
Work Table	SS work table with due reinforcement
Side panels	Glass side panels
Lights	Fluorescent Lights with Milky White Diffuser
Pressure Gauge	Differential Pressure Gauge
Timer	Clean Down Timer with Operation Hold indicator
DOP Test Port
5/15 Amp Switch Socket for external equipment

Other Information

Pay Mode Terms: T/T (Bank Transfer)

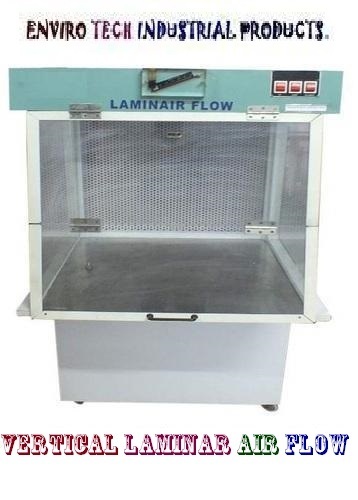

VERTICAL LAMINAR FLOW CABINET.

Fabricated using superior quality raw material, our range of Laminar flow cabinets is highly in demand in the global market. These laminar flow cabinets laminar air flow cabinet have been conceptualized to provide a work area completely bathed in high efficiency perfect air which is free from any kind of particulate contamination or impurities.

We offer a precision engineered range of vertical laminar flow cabinet that have manufactured using superior quality raw material.

Safe to use these vertical laminar flow cabinet are widely applicable in :

· Microbiological manipulations

· Bio-assays and sterility testing

· Bio clean protection for semi-automatic vial filling and bunging operations in parenteral production hospitals pathological laboratories microelectronics optics food and beverage, agriculture, animal husbandry, avionics and biotechnology.

· Dry processing of electrons electronic integration and micro feature assembly or for automatic filling lines in parenteral production.

· Microbiological labs or other research control centers engaged in investigative work with sub-toxic materials.

· Providing protection for open vessels of chemicals solvents or powders.

Technical specification:

· Cleanliness - Class 100

· Particle retention- 0.3 micron

· Velocity - 90FPM+20%

· Illumination - 750-800 lumens

· Noise level - 60-65 decibels

· Standard - FED 209E

· Power supply - 220 single phase

Advantages of vertical laminar flow cabinet:

· Air-Stream is not directed at the operator causing less stress over.

· Larger pieces of equipment cause less.

· Larger working area.

LAMINAR AIR FLOW
WORK BENCH	HORIZONTAL MODEL	VERTICAL MODEL
2 x 2 ft	ETIP 2	ETIP 2
3 x 2 ft	ETIP 3	ETIP 3
4 x 2 ft	ETIP 4	ETIP 4
6 x 2 ft	ETIP 6	ETIP 6
8 x 2 ft	ETIP 8	ETIP 8

Other Information

Pay Mode Terms: T/T (Bank Transfer)

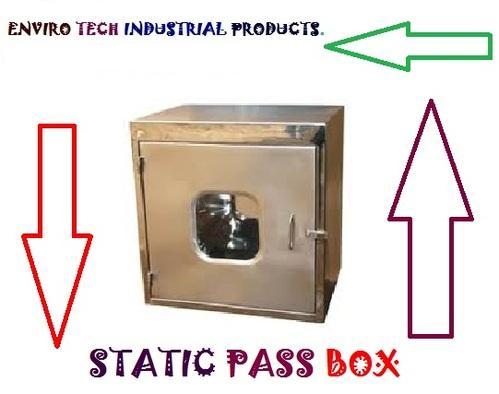

Static Pass Box

Technical Specifications:

Material of construction: - S.S.304/316 PVC coated matt finish OR
CRCA powder coated with RAL 9004 color shade.

Accessories:

Hour Meter Connected to UV light.
Door handles.

Electrical details: -

8/20w, Fluorescent light with milky diffuser.
8/15w, UV light along with Hour Meter.
12 Volt, Electromagnet for door interlocking.
12 Volt, Buzzer.
12 Volt Indicator lamps.
16 Amps. Three – pin top along with connection cable

Selection Chart:

Model No.		Overall Dimension {MM}			Workspace Dimensions {MM}			Electrica
		W	D	H	W	D	H	SUPPLY { PHASE }
ETIP / 2-2-2		730	690	760	610	610	610	SINGLE
ETIP / 3-3-3		1035	995	1055	915	915	915	SINGLE
	Note – All other dimension are available as per requirement

Other Information

Pay Mode Terms: T/T (Bank Transfer)

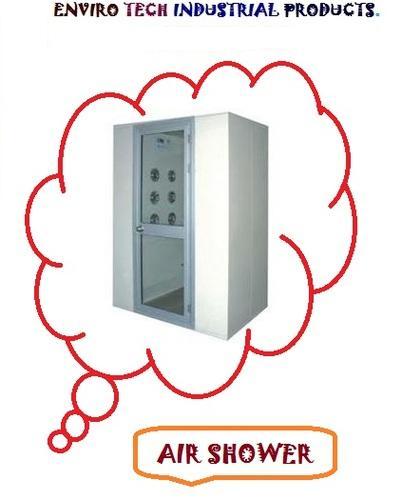

Air Shower

We are the prominent manufacturer trader exporter and supplier of a wide and exclusive range of Air Shower that is manufactured using high grade raw material and advance technology. Our offered shower is tested by our industry developed parameters in order to ensure its flawlessness. Our offered range is appreciated by our clients for its features like ruggedness and corrosion resistance. Moreover, clients can easily avail this shower from us at affordable price.

Features:

Sturdy construction
Durability
Rust proof

Specifications:

Clean air showers are must for clean room entrances
There air shower removes dust and germs from the clean area
Clean air showers stop enters of contaminated air to enter into the clean rooms thus having additive advantage
Air is forced out through the nozzles a 25 30 m/sec velocity to wash put contaminations from clothes and shoes in seconds
Air showers create an invisible clean air barrier to block of unfiltered air into the room
Material Of Construction: Enviro Tech produces clean air showers in SS 304 & SS 316 constructions

Other Information

Pay Mode Terms: T/T (Bank Transfer)

Laminar Flow Bench

Owing to our rich expertise in this domain we are devotedly indulged in providing our clients with high quality Laminar Flow Bench. The offered bench is manufactured by our experts using premium quality raw material at par with the set industry standards. To ensure that our offered range stand prefect on international quality parameters this bench is checked by our adroit quality professionals based on varied parameters like design finish etc.

Features:

Robustness
Corrosion Resistance
Hassle free performance

Specifications:

Types:

Horizontal Flow Type
Vertical Flow Type
Hanging Type.

Made Out Of:

Stainless Steel Construction.

Standard:

Laminated Table Top Fluorescent Light Hepa Filter, Pre-Filter Dynamically Balances Motor & Blower Manometer.

Optional:

UV Light SS Table Top Protective Grills Acrylic Sid Panels Air / Gas Pit Cock Electronic Arrangements or Filter Choking Indication.

Std Size:

2’x2’,
2’x3’,
2’x’4,
2’x8’,
2’x10’

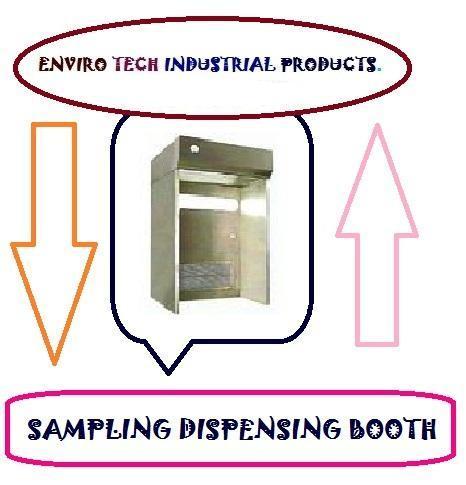

Sampling Dispensing Booth

We are recognized as the leading manufacturer trader exporter and supplier of an immaculate range of Sampling Dispensing Booth. Offered dispensing booth is used to analyze & test samples drawn from dispensing booth and other area. This booth is manufactured by our highly skilled professionals using best quality raw material in adherence with the set industry norms. Further this product is tested against various quality parameters to ensure its quality and flawlessness.

Features:

Compact design
Durability
Excellent quality

M.S

powder coated or Stainless steel body

Durable

and easy to clean

Stainless

Steel Standing Base

HEPA

Fine and Pre-Filter

U.V

Light

Fluorescent

Lamp

Operating

Switch

Motor

Blower Assembly

Static

Pressure Manometer

Specifications:

Dispensing booth is required for Enviro Tech industry to dispensing bulk raw material in clean room to avoid contamination and operator safety
Sampling booth is used to analyze & test samples drawn from dispensing booth and other areas. The equipments are available in different sizes to suit individual requirements
Standard sizes available are 4’x3’, 4’x4’, 4’x6’, etc
Flp system is optional and can be offered, if required. Units are fitted with light assembly (u. V & fluorescent tubes), magnetic gauges for pressure differential, table top & soft walls

Other Information

Pay Mode Terms: T/T (Bank Transfer)

Pass Box

We rule the market by offering a broad assortment of Pass Box that is highly appreciated by our prestigious customers due to unmatched quality. Our dominance over the market comes from the fact that we manufacture our product using high grade raw material that is procured from the well known vendors. This box is verified on numerous guidelines in compliance with the set industry standards to guarantee our clients optimum satisfaction.

Features:

Low maintenance
Dimensionally accurate
High functionality

Specifications:

Pass Box is required for material transfer to & from Clean Rooms
It Reduces number of persons entering Clean Room
They are available in Stainless Steel Construction with interlocking arrangement with and without built in HEPA air barrier

Standard Size:

Size: 2’x2’x2’, 3’x3’x3’

Interlocking Facilities:

Completely Automatically with DC Solenoid Valves

Accessories:

Fluorescent & UV light of Philips Make

Motor & Blower:

Motor AUE/STD make & Blower-Enviro Tech/STD

Other Information

Pay Mode Terms: T/T (Bank Transfer)

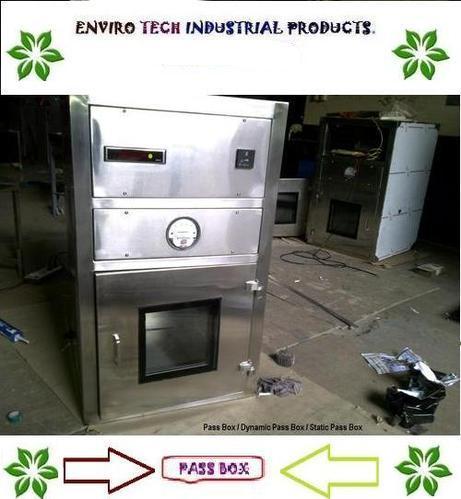

Dynamic Pass Box

Technical Specifications:

Material of construction: - S.S.304 / 316 PVC coated matt finish OR CRCA Powder Coated with RAL 9004 Color Shade.

Suction Filter:

Filter Casing – S.S304 / 316 Flange Type.
Efficiency – 95% down to 5 micron { EU – 4 rating.}
Madia – Non – Woven Synthetic Media sandwiched between two layers of High Density Polyethylene Mesh.

Supply Filter:

Filter Casing – Aluminum Factory extruded section.
Efficiency – 99.999% down to 0.001 micron { EU – 14 rating.}
Madia – Micro fiberglass paper media {Imported } Pleated along with hot Melt Glue.

Blower motor assembly:

Enviro tech Make 230Volts, 50Hz, Single- Phase imported Blower along with inbuitt motor

Accessories:

Hour Meter Connected to UB Light.

Door Handles:

Magnehelic/Minihelic Pressure Gauge.

Electrical details:

8/20w, Fluorescent light with milky diffuser.
8/15w UV light along with Hour Meter.
12 Volt Electromagnet for door interlocking.
12 Volt Buzzer.
12 Volt Indicator lamps.
16 Amps. Three – pin top along with connection cable

Selection Chart:

Model No.		Overall Dimension {MM}			Workspace Dimensions {MM}			Electrica
		W	D	H	W	D	H	SUPPLY { PHASE }
ETIP / 2-2-2		750	710	1250	610	610	610	SINGLE
ETIP / 3-3-3		1055	1015	1555	915	915	915	SINGLE
	NOTE – ALL OTHER DIMENSIONS ARE AVAILABLE AS PER REQUIREMENTS
